Bearing Fitting Tool TMFT 24 | TMFT 36

SKU:BEA001810

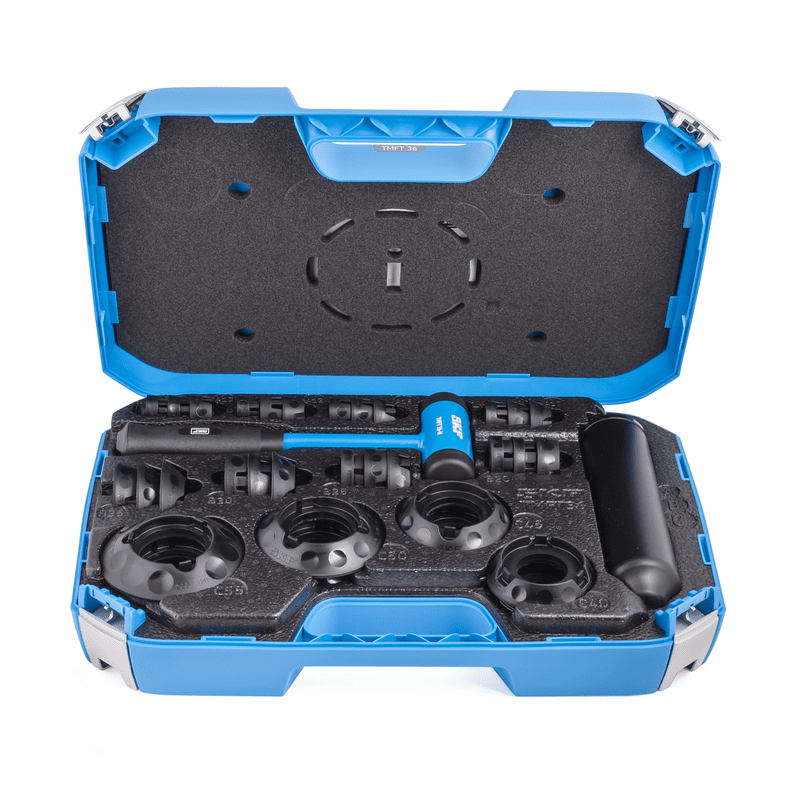

Poor fitting, usually using brute force, accounts for 16% of premature bearing failures. The SKF Bearing fitting tool kit is designed for quick and precise mounting of bearings, while minimising the risk of bearing damage. The right combination of impact ring and sleeve allows effective transmission of mounting force to the bearing ring with the interference fit. This minimises the risk of damaging the bearing’s raceways or rolling elements. In addition to mounting bearings, the TMFT 36 is also suitable for mounting other components such as bushings, seals and pulleys. The TMFT 36 kit contains 36 impact rings, 3 impact sleeves and a dead-blow hammer packed in a lightweight carrying case.
Call for price
Manufacturer : SKF

Description

Helps prevent premature bearing failures

  • Facilitates the mounting of a wide range of bearings with bore diameters from 10–55 mm
  • Facilitates correct mounting on shaft, housing and blind applications
  • The diameter of the impact ring precisely fits the inner and outer diameter of the bearing
  • Small diameter of the impact area on top of the sleeve allows effective transmission and distribution of mounting force
  • Impact rings and sleeves are made of high impact resistant material for longevity
  • Click connection between impact ring and sleeve provides stability and durability
  • The impact rings are suitable for use under a press
  • Impact rings are marked for clear visual identification of the ring’s size and easy selection
  • Even surface of the impact sleeve’s body provides excellent grip
  • The nylon double-side head of the dead-blow hammer helps to prevent damaging the components
  • The ergonomic hand grip of the dead-blow hammer provides excellent grip
TMFT 36 IS SUITABLE FOR SKF BEARING SERIES
Deep groove ball bearing Deep groove ball bearing (sealed) Self aligning ball bearing
6000-6011 62200-62211 1200-1211
6200-6211 62300-62311 129
6300-6311 63000-63010          1301-1311
6403-6409 2200-2211
629 2301-2311
62/22 11207-11210
62/28
63/22
63/28
16002-16011
16100-16101
98203-98206

Single-row angular contact ball bearing

Double-row angular contact ball bearing

 Spherical roller bearing
7000-7011 3200-3211 21305-21311
7200-7211 3302-3311   22205/20
7301-7311  22205-22211
22308-22311

Cylindrical roller bearing Tapered roller bearing CARB toroidal roller bearing
N 1005-N 1011 30203-30211 C 2205-C 2211
N 202-N 211 30302-30311 C 4010
N 2203- N 2211 31305-31311 C 6006
N 2304-N 2311 32004-32011
N 3004-N 3011 32205-32211
N 303- N 311   32303-32311
33010-33011
33205-33211
TECHNICAL DATA
Designation   TMFT 36
Impact ring Bore diameter 10–55 mm (0.39–2.17 in.)
Outer diameter 26–120 mm (1.02–4.72 in.)
Sleeves Maximum shaft length Sleeve A:  220 mm (8.7 in.)
Sleeve B:  220 mm (8.7 in.)
Sleeve C:  225 mm (8.9 in.)
Hammer   TMFT 36-H, weight 0,9 kg (2.0 lb)
Carrying case dimensions   530 × 110 × 360 mm (20.9 × 4.3 × 14.2 in.)
Number of rings   36
Number of sleeves   3
Weight (including carrying case)   4,4 kg (9.7 lb)



SPARE PARTS
Designation Description
TMFT 36 A Impact sleeve size A
TMFT 36 B Impact sleeve size B
TMFT 36 C Impact sleeve size C
TMFT 36 A10-26 Impact ring size A10-26
TMFT 36 A10-30 Impact ring size A10-30
TMFT 36 A10-35 Impact ring size A10-35
TMFT 36 A12-28 Impact ring size A12-28
TMFT 36 A12-32 Impact ring size A12-32
TMFT 36 A12-37 Impact ring size A12-37
TMFT 36 A15-32 Impact ring size A15-32
TMFT 36 A15-35 Impact ring size A15-35
TMFT 36 A15-42 Impact ring size A15-42
TMFT 36 A17-35 Impact ring size A17-35
TMFT 36 A17-40 Impact ring size A17-40
TMFT 36 A17-47 Impact ring size A17-47
TMFT 36 B20-42 Impact ring size B20-42
TMFT 36 B20-47 Impact ring size B20-47
TMFT 36 B20-52 Impact ring size B20-52
TMFT 36 B25-47 Impact ring size B25-47
TMFT 36 B25-52 Impact ring size B25-52
TMFT 36 B25-62 Impact ring size B25-62
TMFT 36 B30-55 Impact ring size B30-55
TMFT 36 B30-62 Impact ring size B30-62
TMFT 36 B30-72 Impact ring size B30-72
TMFT 36 B35-62 Impact ring size B35-62
TMFT 36 B35-72 Impact ring size B35-72
TMFT 36 B35-80 Impact ring size B35-80
TMFT 36 C40-68 Impact ring size C40-68
TMFT 36 C40-80 Impact ring size C40-80
TMFT 36 C40-90 Impact ring size C40-90
TMFT 36 C45-10 Impact ring size C40-100
TMFT 36 C45-75 Impact ring size C45-75
TMFT 36 C45-85 Impact ring size C45-85
TMFT 36 C50-11 Impact ring size C50-110
TMFT 36 C50-80 Impact ring size C50-80
TMFT 36 C50-90 Impact ring size C50-90
TMFT 36 C55-10 Impact ring size C55-100
TMFT 36 C55-12 Impact ring size C55-120
TMFT 36 C55-90 Impact ring size C55-90
TMFT 36-H Dead-blow hammer
TMFT 36-CC Toolcase with inlay for TMFT 36
TDTC 1/C Toolcase without inlay
